Next Generation Electrolyte

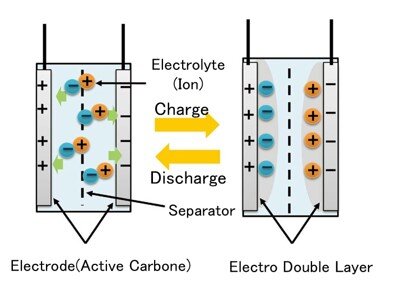

Otsuka Chemical offers a next-generation high performance and high purity electrolyte for use in capacitors. The solution is based on our pharmaceutical production technology and nitrogen chemistry expertise in hydrazine production. Otsuka Chemical will support the technological advancement of electric double layer capacitors (EDLC) through precise quality control and analysis using in-house evaluation facilities.
Solution
Contributes to enhancing the performance of EDLCs.
It uses highly soluble electrolytes and helps extend product lifespans through thorough quality control.
It can be provided in combination with many different solvents.
Advantage
- Using highly soluble electrolytes
- Useable within a broad temperature range
- Thorough quality control with precise analysis
General Properties
| Appearance | Colorless to thin-yellow solution | |
|---|---|---|
| Concentration of electrolyte | mol/L | 1.5 |
| Conductivity (25°C) | mS/cm | 15～16 |
| Water | ppm | ≤30 |
| Heavy metals | ppm | ≤1.0 |

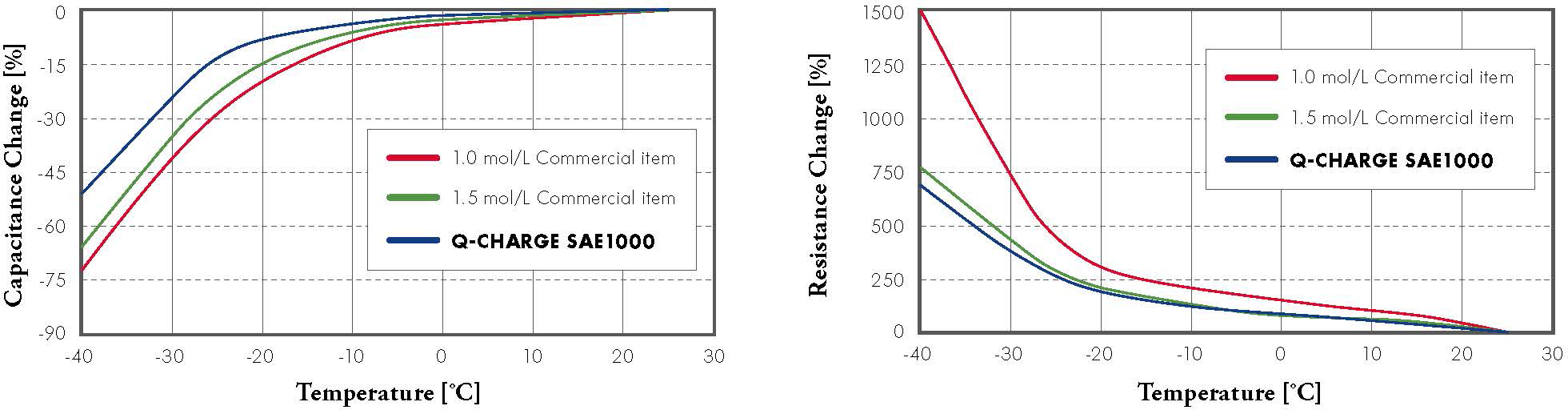

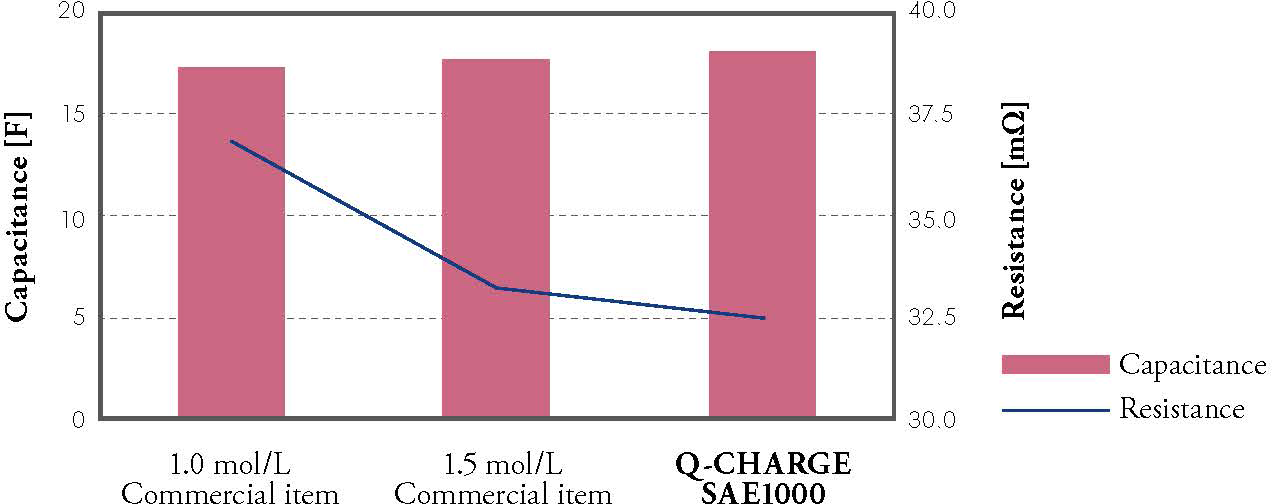

Properties of EDLC using of Q-CHARGE SAE1000
Applications
- EDLC
