Extra super fine fibers for the future
TISMO was born in 1979, and it has been used for many years. We have been constantly
expanding its range of applications in several industrial fields, such as automobiles, office
automation equipments, and electronic equipments.
Advantages
What is TISMO?
"TISMO" is potassium titanate fiber shown with K2Ti8O17 or K2Ti6O13, and has the very thin form of a fiber length 10-20μm, a fiber diameter 0.3-0.6μm． "TISMO" has high strength, high rigidness, many advantages from the high-aspect-ratio, and it is used in wide application fields such as reinforcement of plastics, friction material for the automobile, and precise filter.
Features of TISMO

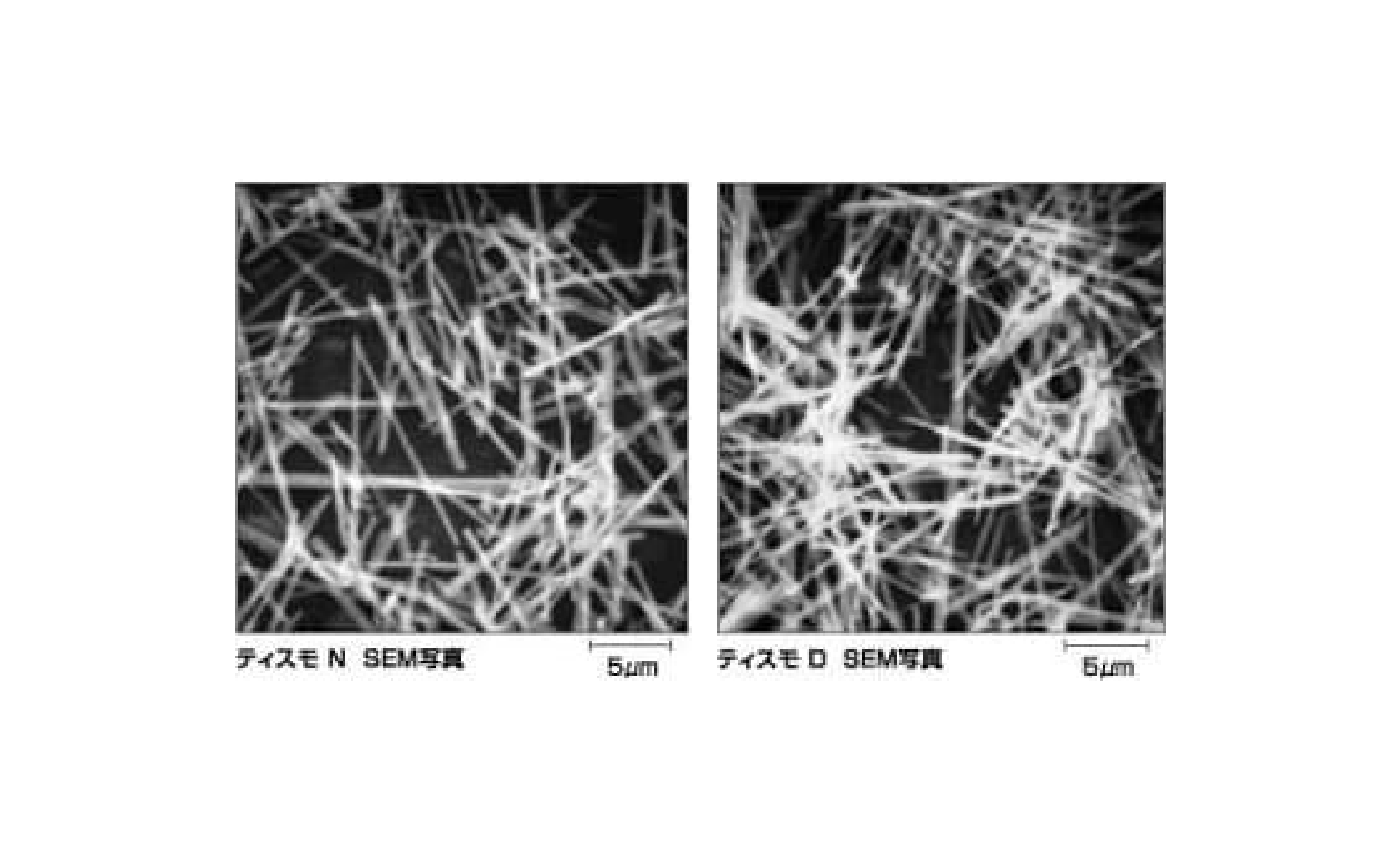

- It is a fine and crystalline fiber. It has the size of about one thousandth of the general glass fiber.
- It is high strength, and high-rigid material. It has the strength and rigidity equivalent to the carbon fiber.
- It is optimum for the friction material. It has a Mohs hardness equivalent to cast iron, and it has the excellent friction and wear property.
General Properties
| Grade | Unit | TISMO D | TISMO N |
|---|---|---|---|
| Chemical composition | - | K2O・8TiO2 | K2O・6TiO2 |
| Appearance | - | White powder | White powder |
| Average fiber diameter | μm | 0.3 〜 0.6 | 0.3 〜 0.6 |
| Average fiber length | μm | 10 〜 20 | 10 〜 20 |
| True density | g/cm³ | 3.3 〜 3.5 | 3.4 〜 3.6 |
| Water content | % | <0.7 | <0.7 |
| pH (dispersed in water) | - | 9 〜 10 | 7 〜 8 |
| Melting point | °C | 1300 〜 1350 | 1300 〜 1350 |
| Mohs hardness＊ | - | 4 | 4 |
| Tensile strength＊ | GPa | 7 | 7 |
| Tensile modulus＊ | GPa | 280 | 280 |
| Electrical resistance＊ | Ω・cm | 3.3 × 10¹⁵ | 3.3 × 10¹⁵ |
＊Literature data
Applications
- Friction materials（ Automotive brake pad, brake lining, clutch, motorcycle brake pad etc.）
- Plastics additives（ Precision parts, anti-wear parts, heat-resistance parts）
- Heat resistant paints
- Ion exchange uses
- Filters（ Diesel engine filter）
